Guilford Country Resignaling Updates

With the re-signaling of the former Guilford Rail System/Boston & Maine Western Route Main Line accelerating rapidly, I managed to carry out a multi-day road trip to gauge the situation and take what photos I could. With the re-signaling already complete between the Mass border an the Exeter, NH area I started at Dover, NH and worked my way north to Saco, ME.

My first discovery was that CSX was doing more than just swapping out the signaling and the signal rules. Outside of the MBTA zone the interlockings have all been renamed from the Guilford era CPF-Milepost format to location based names, some of which call back to B&M telegraph cores and others more modern things like road names. Overall this marks an improvement as the CPF names were a result of the crazy Guilford owner kitbashing a 715 mile long main line between Mattawamkeag, ME and Sunbury, PA in 1981. Changing the interlocking names was actually in support of moving away from the Guilford's "Freight Main Line" 0 to 715 mileposts. Unfortunately CSX did not restore the original B&M mileposts from Boston and instead established an MP 0 in Portland Maine that increases as one travels west. Although the chaining was not changed, stone "Boston" mileposts defaced with spray paint instead of reused.

Main track Clear at CPF-243

New signal bridge at Rollingsford Jct

In the Dover area the B&M signaling, including classic signal gantries, is very much on its way out. The holdout signals at CPF-244 in downtown Dover are also going to be removed without replacement due to the reduced need for switching movements that need to occupy the main line. Dover actually represents a bit of a B&M signaling island right now as just over the Main border, double tracking improvements have already ushered in Seaboard signaling all the way through Wells, ME.

Part of these improvements include a new full crossover designated WILLIE west of the Wells, ME Downeaster station. The only details of note is that standard CSX switch procurement is now from Apex and the color light signal modules are now from Progress Rail instead of Safetran.

Milepost 211 searchlight automatic. Note the new CSX milepost number.

The section between Wells and Saco was re-signaled by Guilford in the 1990's with brand new SA searchlights, however new signal mast footings are in place at all of the locations as CSX can't let us have nice things.  CSX has also replaced all of the former Guilford defect detectors with brand new units, which runs counter to their practice after the Conrail merger where CR readouts lingered for over a decade.

Turned signal mast at Saco.

At Saco a turned target type signal awaits an unknown fate. The sale to CSX caught some of the Guilford's own re-signaling projects in mid-stride. If any Federal funds were used as part of Downeaster service improvements, it might be difficult for CSX to scrap this work so we will have to see what they choose to do.

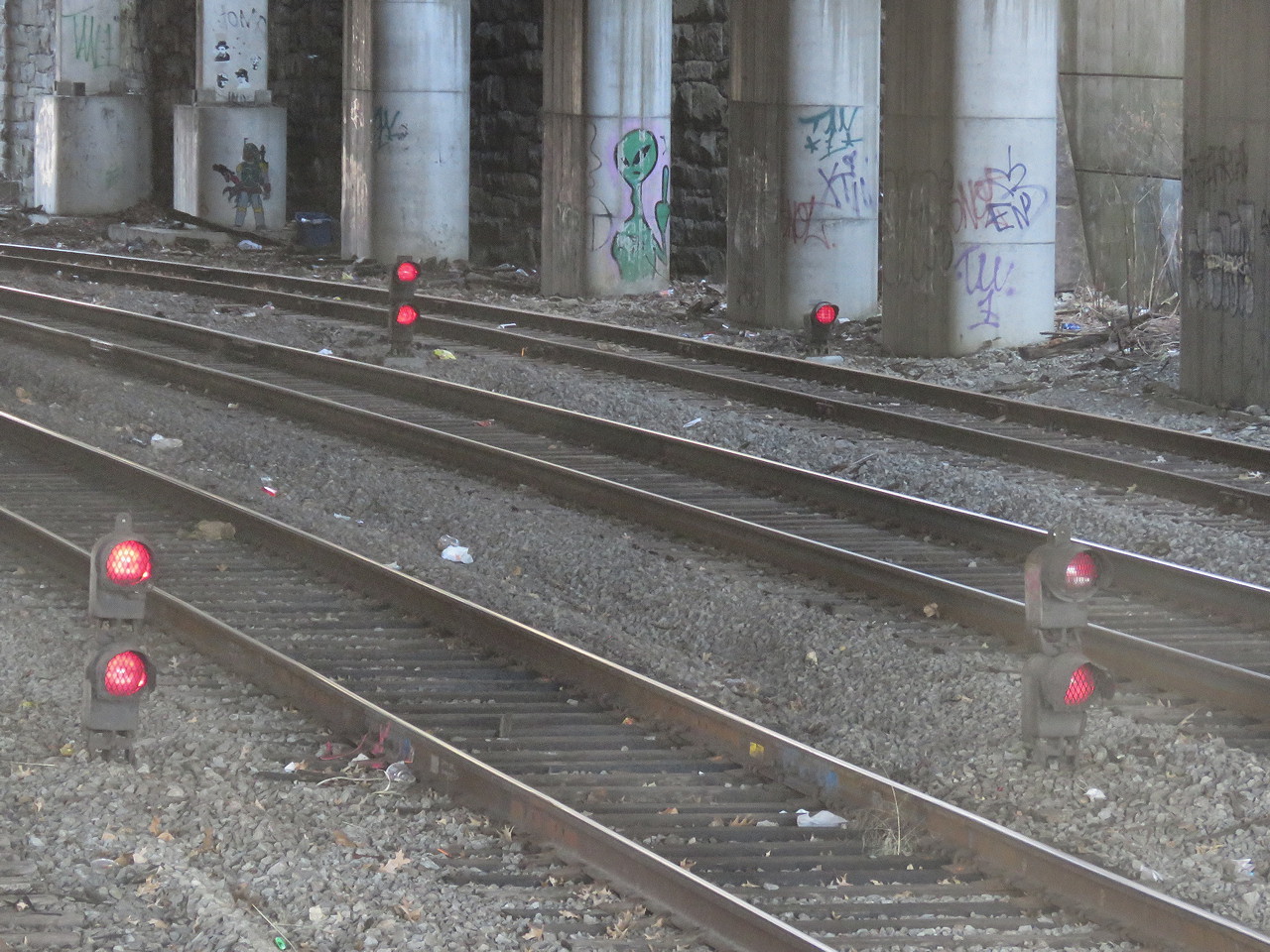

CPF-LO w/b dwarfs

The corridor between Lowell and Ayer has seen no recent activity on the part of CSX. This might be due to the state of Mass owning all of part of the infrastructure or just the lack of passenger operations bumping down the priority. I am pretty sure the state owns the Northern Route Main Line to the wye junction north of town and possibly to the New Hampshire border and plans for Nashua commuter rail will likely dissuade CSX from making changes the government might ultimately pay for. While I already reported on the re-signaling of Lowell's BY interlocking by MBTA, CPF-LO west of the station is intact, although all connections to MBTA tracks have been cut.

CPF-307 eb-B&M signal bridge

CPF-307 new w/b searchlight mast.

The ABS signals and CTC siding on the Guilford track between Lowell and Ayer are also intact with each end of the siding featuring an intact B&M signal bridge. CPF-307 even has what appears to be a fairly new 3-head searchlight mast, although it is unclear if this was carried out under CSX or Guilford.

CSX Finds a New Old Off Brand M23

I few years ago I posted an article covering changes to the US&S logo over time as seen on its M3/M23 line of electric point machines. This article also covered off brand copies of the M3 from companies such as Patco Rail Services and Vossloh. CSX in particular had gone all in on the Vossloh "VSM-24" product.

Well it appears that CSX has found a new supplier, kinda.  Apex Rail Automation appears to have taken over Vossloh's VSM-24 production line as the only thing that has changes is the stenciling and the lack of a cast company name on the circuit controller housing.

Of course the other news headline is that CSX is replacing its B&O era GRS Model 5F and 5H machines in B&O territory.  Maybe Vossloh made CSX a offer they couldn't refuse and then realized they then couldn't make a profit. We'll see if Apex has any better luck.

NS Ashville Cantilever is Kaput

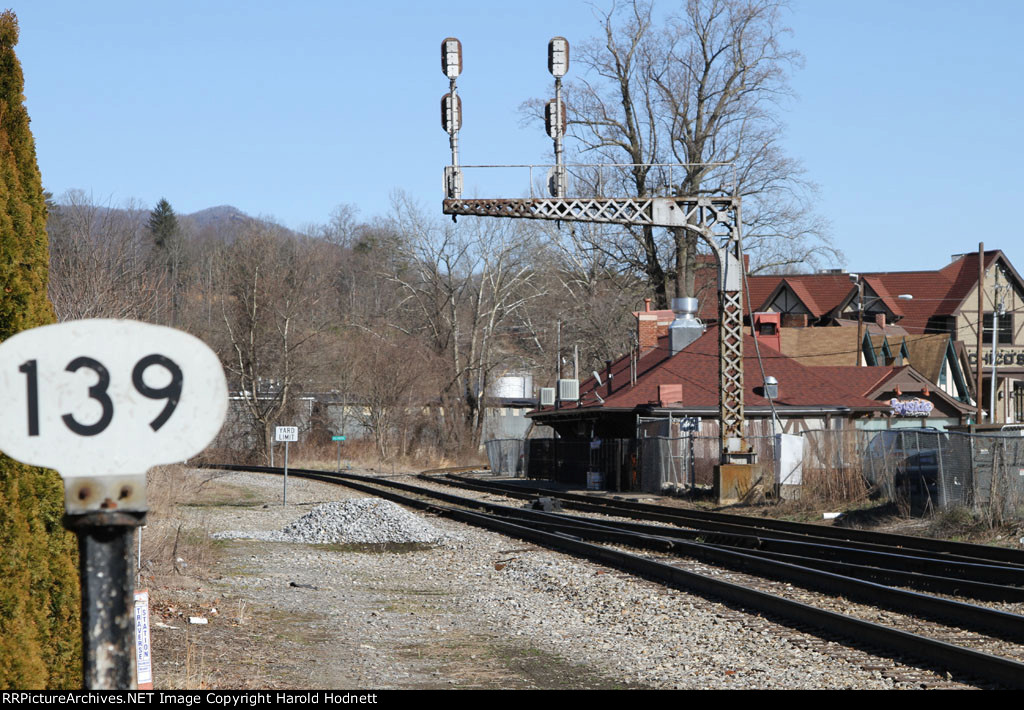

I have seen photos of the great Southern RR cantilever signal in downtown Ashville, NC being cut down for scrap. With modern style ABS signals in the flood affected area now turned out of service it appears that Hurricane Helene has done what NS failed to do with a previous FRA petition failed to do and end the heritage signaling on at least part of the former Southern S-Line.

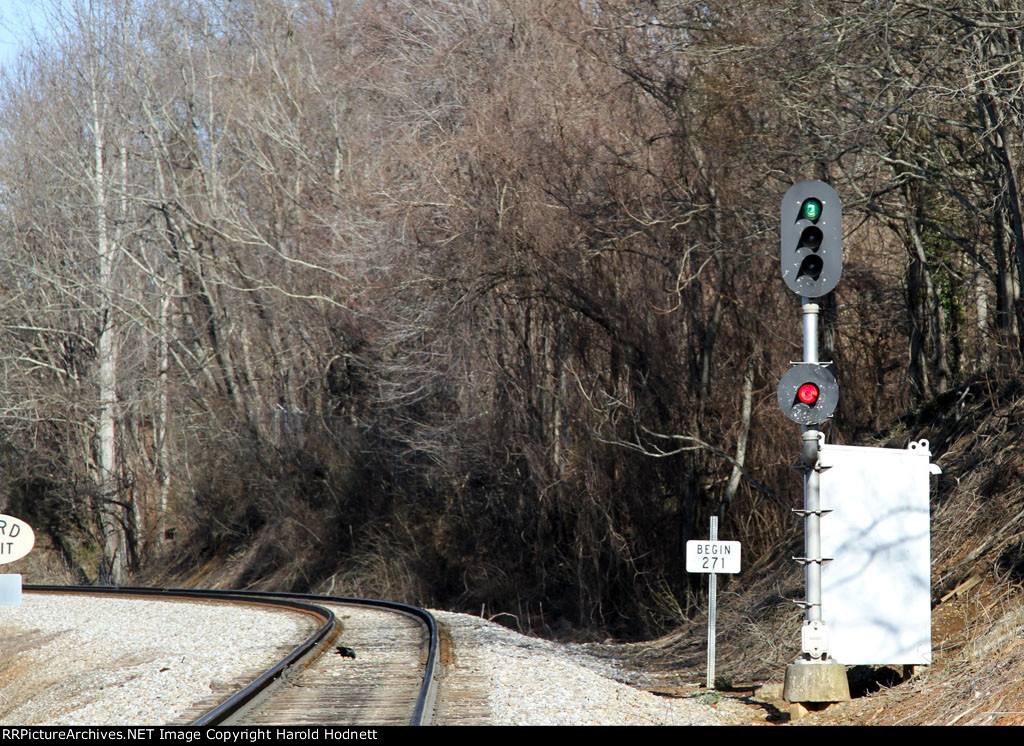

Let's be clear, the only reason the S-Line still had much of its former Southern RR signaling was because declines in coal traffic had ended through trains on the line and NS was trying to actively discontinue the signaling system. Much of the line was still operating under Rule 271 (aka TWC/ABS) with a lot of the signaling dating from around 1980 in the late Southern era with generally more modern signal structures, but split ABS masts following the right-hand-rule.

Although NS appears to be scrapping the Southern-era signals on the hurricane damaged portions of the line around Ashville and into Tennessee, it is unclear if the FRA will re-visit the abandonment or if some sort of bog standard NS Rule 261 setup will replace it.  Also, the parts of the line not damaged by flooding will probably remain unchanged as the State of NC is making noise about passenger service on the route which will come with Federal $ for a resignaling project.

Harrisburg Power Office Is Now Mostly Up and Running

When we last checked in on the Harrisburg Power Director's office about a year ago in 2024, the Big Board had been fully illuminated and most of the Westinghouse "Visicode" SCADA equipment had been reactivated with the help of modern technology simulating the presence of the field equipment like substations and such. However, because the 1930's PRR electrification projects had been funded with depression era WPA loans, the PRR had to spread the wealth and about half the office used GE "Code Selector" hardware that was more complex in operation and not as well documented.

Well between March and September 2024, members of the Harrisburg Chapter NRHS managed to locate the documentation for the GE gear (it was sitting on a storage shelf) and were then able to restore most of the GE panels to operation, which is especially useful that represents the bulk of what was still operational on the old PRR Main Line up through 2013. The GE gear brings the added fun of step switches being used to store digits instead of all-relay registers for the Westinghouse part of the office.

As if step-switches weren't enough, between September 2024 and March 2025, the team also reconnected the alarm lamps and bell which further adds to the effect.

Still to be addressed are the metering circuits along with programmed simulation elements that would allow visitors to participate in directing flows of 25hz power to virtual train movements. Still, the Harrisburg power office  is mostly complete in terms of being "a thing that functions as it once did" so watch out for planned opening dates as the chapter is still trying to figure out how to manage regular hours.
